Combined Bearings for Heavy Linear Motion

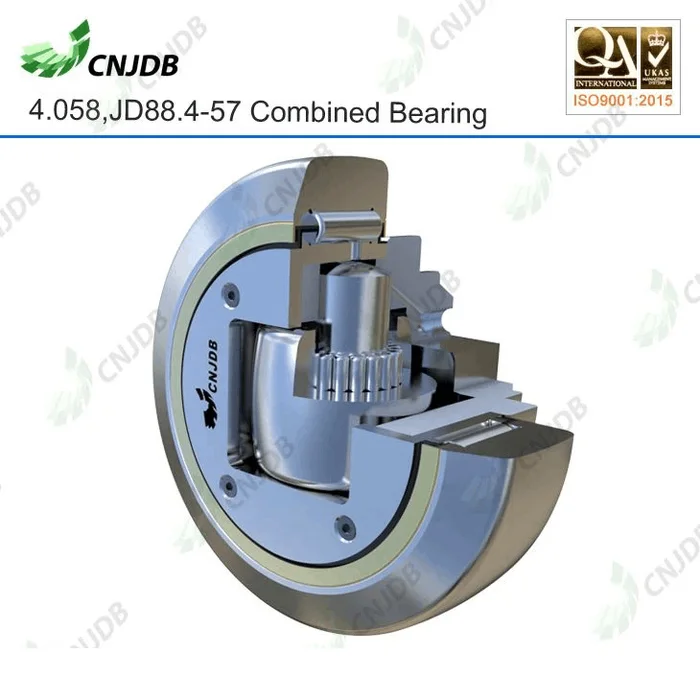

4.058 combined roller bearing with radial and axial rollers, cutaway view

Product Overview

Combined Bearings

Standard, adjustable, high-load and welded-plate combined roller bearings for forklift masts, steel sections and lifting systems.

Selection Model, dimensions and load data confirmed before quotation
Lead time Standard and drawing-based options quoted by requirement
Input required Model, dimensions or controlled drawing

Standard and Non-Standard Combined Bearings

We supply combined bearings — also searched as combination bearings — that carry radial and axial loads in one compact unit. Typical applications include forklift masts, telescopic columns, material-handling equipment and heavy linear guide systems.

Combined Bearing Series and Keywords

  • Winkel-type standard combined bearings: 4.053, 4.054, 4.055, 4.056, 4.058, 4.059, 4.061, 4.062 and 4.063

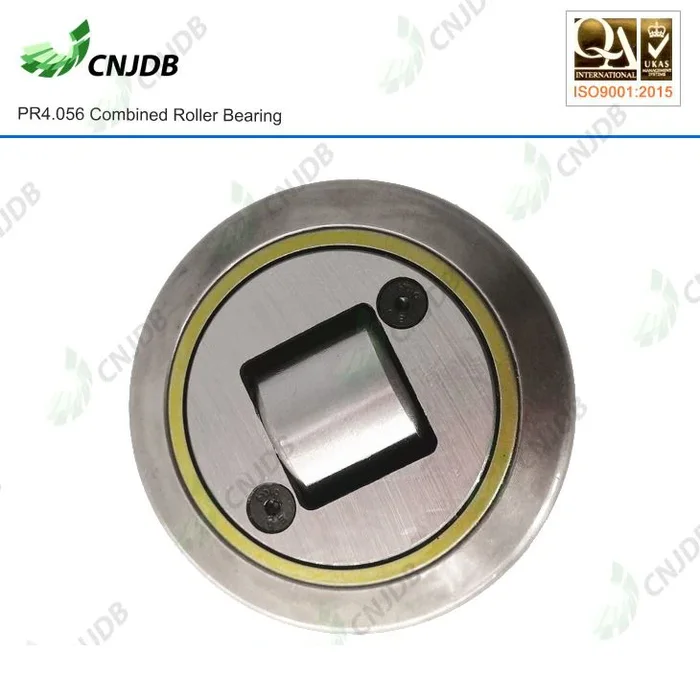

  • Precision series: PR4.054–PR4.056 and PR4.058–PR4.063

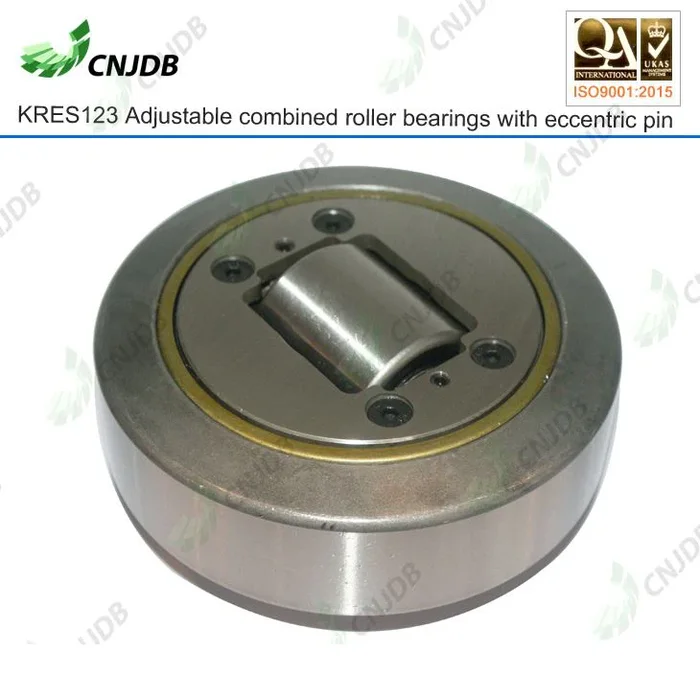

  • Eccentric adjustable bearings: 4.454–4.463

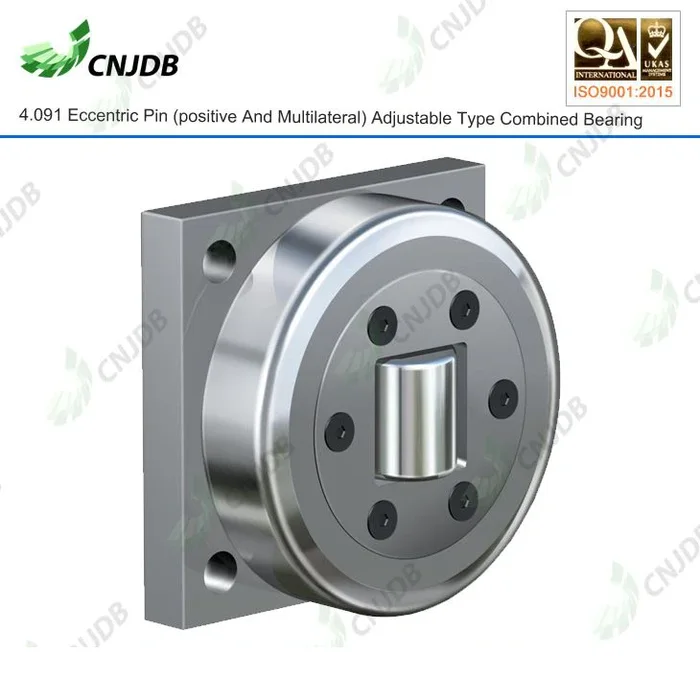

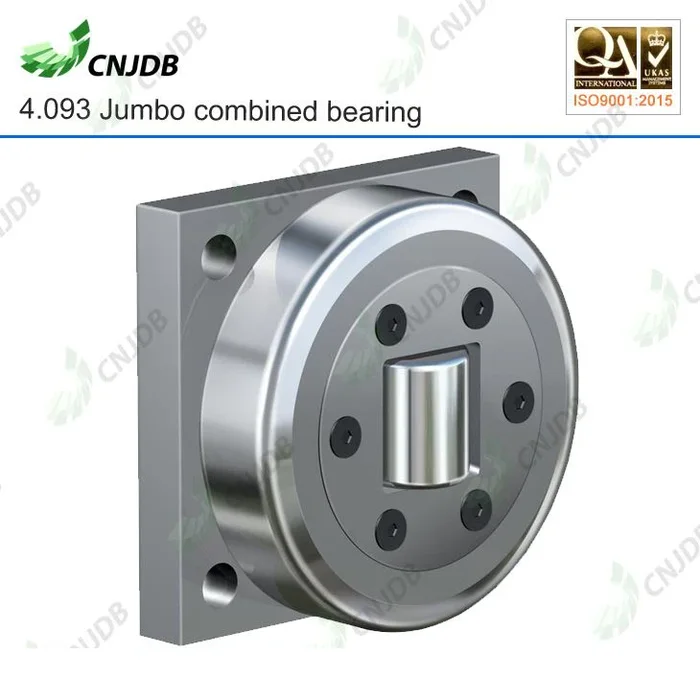

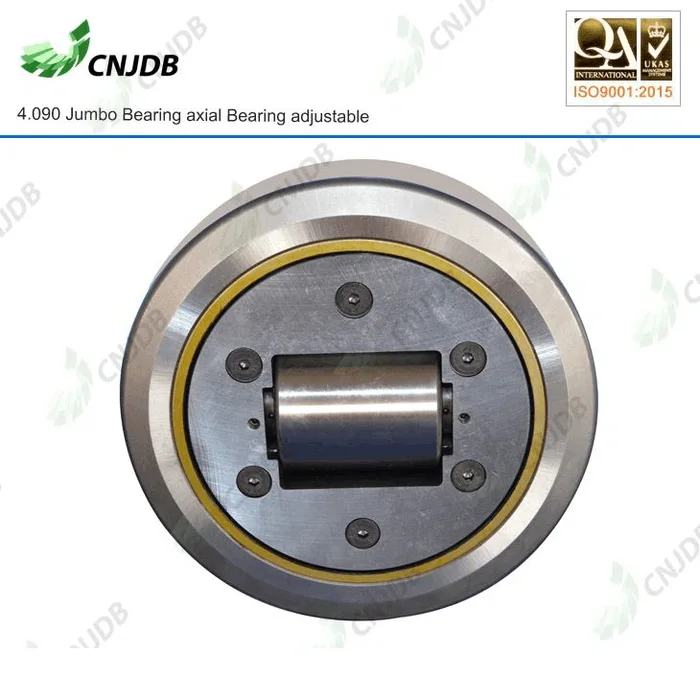

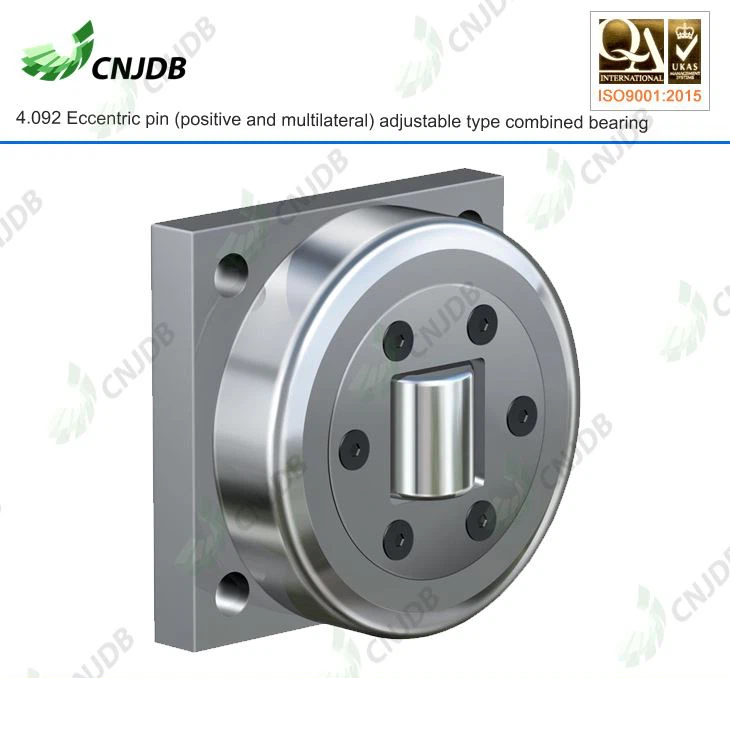

  • Jumbo high-load bearings: 4.085, 4.089, 4.090–4.096
  • Combined bearings welded on AP0, AP1, AP2, AP2-LUB, AP2-Q, AP3.1, AP4, AP6 and AP91-Q plates

Also known as: other names for combined bearings

Buyers, maintenance teams and machine builders use different names and spellings for the same product family. These terms are identification and search clues, not an interchange approval.

  • Combination bearings
  • Combination roller bearings
  • Combi bearings
  • Combined roller bearings
  • Heavy duty combined bearings
  • Heavy-duty combined bearings
  • Heavy duty cam followers
  • High load roller bearings
  • Mast guide bearings
  • Forklift mast guide bearings
  • Material handling guide bearings
  • Finishing line bearings
  • Steel section guide bearings
  • WINKEL-type combined bearings

Suffixes, seals, lubrication, tolerances and mounting executions can change fit. Send the complete marking and a controlled drawing for confirmation.

Reference Groups

Combined Bearings series and model references

Use these groups to identify the requested design. A reference is not an interchange approval; dimensions, suffixes and operating conditions must still be checked.

Design group Common references or options
Standard combined bearings 4.053, 4.054, 4.055, 4.056, 4.058, 4.059, 4.061, 4.062, 4.063
Precision series PR4.054 through PR4.063
Eccentric adjustable series 4.454 through 4.463
Jumbo high-load series 4.085, 4.089, 4.090 through 4.096
Welded plate assemblies AP0, AP1, AP2, AP2-LUB, AP2-Q, AP3.1, AP4, AP6, AP91-Q

Combined Bearings model directory

Browse individual model dimensions, applications and common cross references.

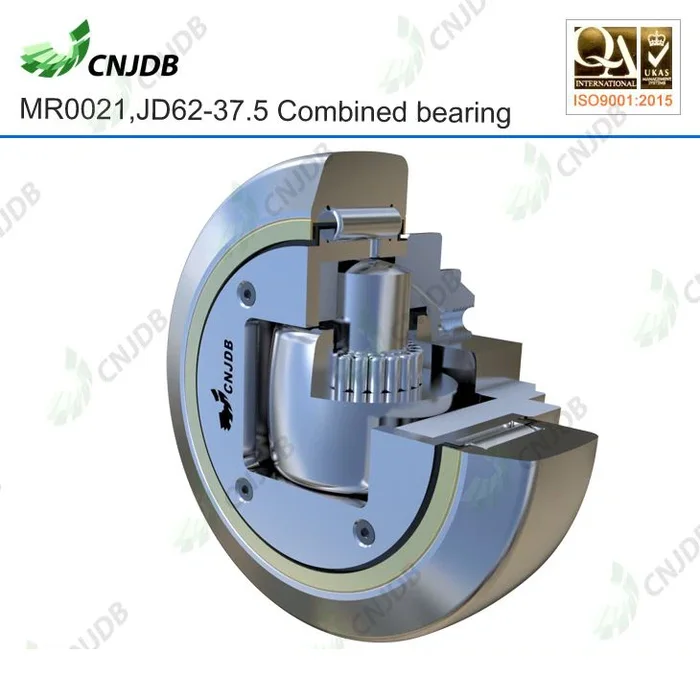

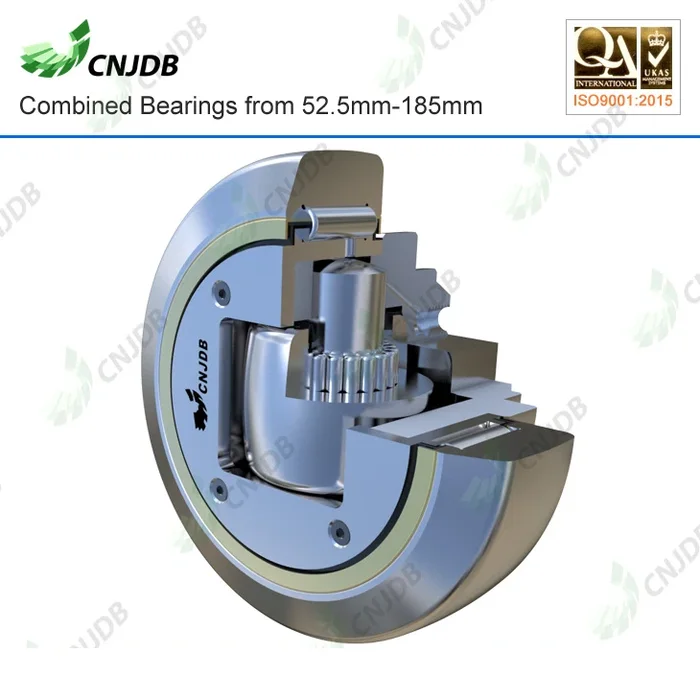

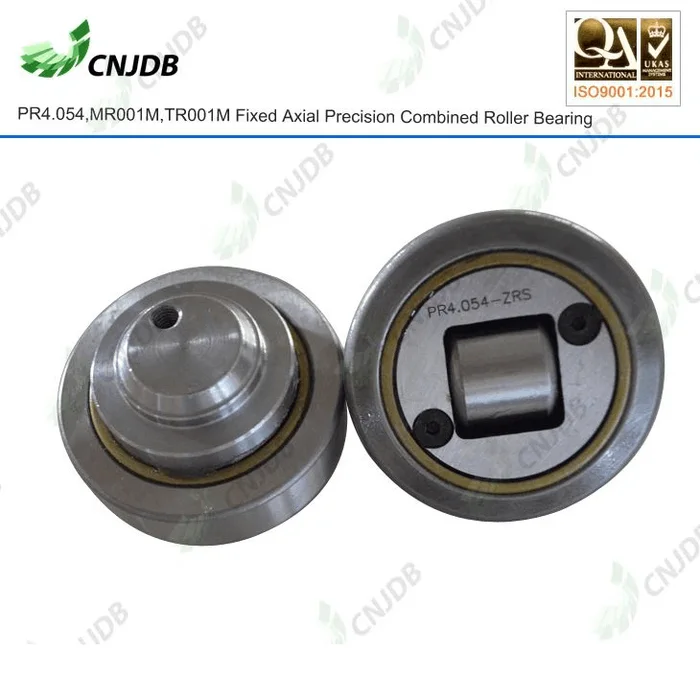

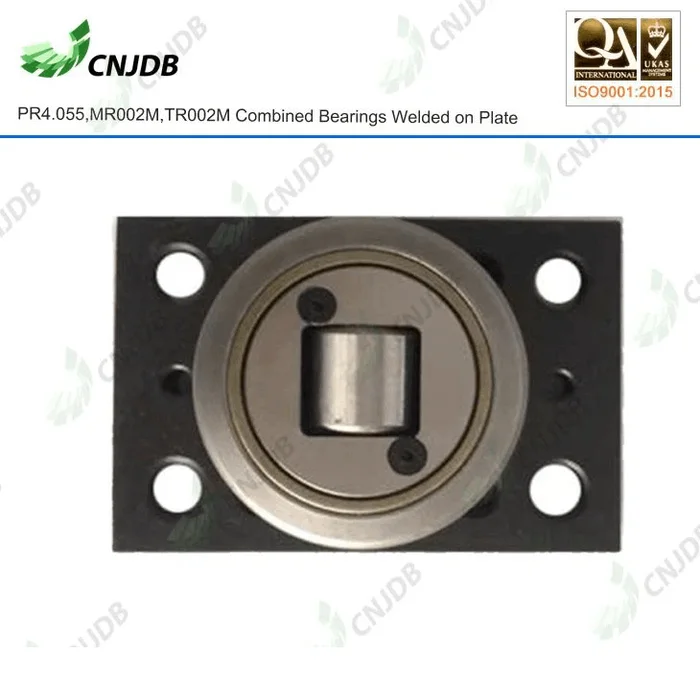

4.053 Combined Bearings 4.053 JD52.5-33 · TR050.0200 · MR0706 4.054 Combined Bearings 4.054 MR0021 · MR0430 · JD62-37.5 4.055 Combined Bearings 4.055 MR0022 · JD70.1-44 · 400-0055 4.056 Combined Bearings 4.056 MR0023 · MR0003 · JD77.7-48 4.058 Combined Bearings 4.058 MR0025 · MR0025G88.4 · JD88.4-57 4.059 Combined Bearings 4.059 JD101.2-46 · 400-0059 · HYV30201 4.061 Combined Bearings 4.061 JD107.7-69 · MR0027 · 400-0061 4.062 Combined Bearings 4.062 JD123-72.3 · MR0029 · 400-0062 4.063 / 4.0063 Combined Bearings 4.063 / 4.0063 TR010 · MR0010 · MR010 PR4.054 Combined Bearings PR4.054 MR001M · TR001M · DR400-0054 PR4.055 Combined Bearings PR4.055 MR002M · TR002M · DR400-0055 PR4.056 Combined Bearings PR4.056 DR400-0056 · JD81.8-48 · AP2 PR4.058 Combined Bearings PR4.058 DR400-0058 · Precision 4.058 class · DR4000058 PR4.059 Combined Bearings PR4.059 DR400-0059 · Precision 4.059 class · DR4000059 PR4.061 Combined Bearings PR4.061 DR400-0061 · Precision 4.061 class · DR4000061 PR4.062 Combined Bearings PR4.062 DR400-0062 · Precision 4.062 class · DR4000062 PR4.063 Combined Bearings PR4.063 DR400-0063 · Precision 4.063 class · DR4000063 4.090 Combined Bearings 4.090 400-0090 · JD190-84.5-KP · 4000090 4.091 Combined Bearings 4.091 JD220-94.5-KPD · 400-0091 · MR0013 4.092 Combined Bearings 4.092 JD250-102-KPD · 400-0092 · MR0014 4.093 Combined Bearings 4.093 MR0015A · JD280-119.5-KP · 400-0093 2.063 Combined Bearings 2.063 TR120 · MR0120 · TR-120 2.0363 Combined Bearings 2.0363 TR111 · TR-111 · TR 111 4.057 Combined Bearings 4.057 JD77.7-40 · 400-0057 · 984.057 4.060 Combined Bearings 4.060 JD107.7-53 · 400-0060 · 984.060 KRES123 Combined Bearings KRES123 KRES 123 · Eccentric Pin Combined Bearing · KRES-123 4.085 Combined Bearings 4.085 JD180-95.7-KP · PR4.085 · JD-180-95.7-KP 4.064 Combined Bearings 4.064 MR191 · JD149-86 · 200.026.000 4.089 Combined Bearings 4.089 JD180-75 · 400-0089 · 984.089 4.454 Combined Bearings 4.454 KB4.054 · 400-0454 · 984.454 4.455 Combined Bearings 4.455 KB4.055 · 400-0455 · 984.455 4.456 Combined Bearings 4.456 KB4.056 · 400-0456 · 984.456 4.457 Combined Bearings 4.457 KB4.057 · 400-0457 · 984.457 4.458 Combined Bearings 4.458 KB4.058 · 400-0458 · 984.458 4.459 Combined Bearings 4.459 KB4.059 · 400-0459 · 984.459 4.460 Combined Bearings 4.460 KB4.060 · 400-0460 · 984.460 4.461 Combined Bearings 4.461 KB4.061 · 400-0461 · 984.461 4.462 Combined Bearings 4.462 KB4.062 · 400-0462 · 984.462 4.463 Combined Bearings 4.463 KB4.063 · 400-0463 · 984.463 4.094 Combined Bearings 4.094 400-0094 · Jumbo combined bearing · 4000094 4.095 Combined Bearings 4.095 400-0095 · Jumbo combined bearing · 4000095 4.096 Combined Bearings 4.096 400-0096 · Jumbo combined bearing · 4000096 AP0 Combined Bearings AP0 AP0 plate assembly · Combined bearing on AP0 · AP-0 AP1 Combined Bearings AP1 AP1 plate assembly · Combined bearing on AP1 · AP-1 AP2 Combined Bearings AP2 AP2 plate · PR4.056 on AP2 AP2-LUB Combined Bearings AP2-LUB AP2 LUB · Lubricated AP2 plate AP2-Q Combined Bearings AP2-Q AP2Q · AP2-Q plate assembly AP3.1 Combined Bearings AP3.1 AP3.1 plate · AP3,1 welded plate · AP-3.1 AP4 Combined Bearings AP4 AP4 plate assembly · Combined bearing on AP4 · AP-4 AP6 Combined Bearings AP6 AP6 plate assembly · Combined bearing on AP6 · AP-6 AP91-Q Combined Bearings AP91-Q AP91Q · 4.091 plate assembly 0.003338.H / 4.0037 Combined Bearings 0.003338.H / 4.0037 4.037 · JD174-95 · 40037 MR3187 Combined Bearings MR3187 0.076395.D · 0.160000.V · 0.160035.C 4.039 / JD185-95 Combined Bearings 4.039 / JD185-95 JD185-95 · 4.039 custom combined bearing · JD18595 AP92-Q / 4.092 Combined Bearings AP92-Q / 4.092 JD250-102-KPD · 400-0092 · MR0014 0.160003.L Combined Bearings 0.160003.L 0.160003 L · 0-160003-L · 0.160003L MR.961 Combined Bearings MR.961 MR961 screw adjustable · DIN 916 axial adjustment · MR961 MR.962 Combined Bearings MR.962 MR962 screw adjustable · DIN 916 axial adjustment · MR962 MR.963 Combined Bearings MR.963 MR963 screw adjustable · DIN 916 axial adjustment · MR963 MR.964 Combined Bearings MR.964 MR964 screw adjustable · DIN 916 axial adjustment · MR964 MR.965 Combined Bearings MR.965 MR965 screw adjustable · DIN 916 axial adjustment · MR965 MR.966 Combined Bearings MR.966 MR966 screw adjustable · DIN 916 axial adjustment · MR966 MR.967 Combined Bearings MR.967 MR967 screw adjustable · DIN 916 axial adjustment · MR967 MR.968 Combined Bearings MR.968 MR968 screw adjustable · DIN 916 axial adjustment · MR968 MR.146 Combined Bearings MR.146 MR.146G2 · MR146 high load combined bearing · MR146 MR.147 Combined Bearings MR.147 MR.146G2 · MR147 high load combined bearing · MR147 MR.148 Combined Bearings MR.148 MR.148G2 · MR148 high load combined bearing · MR148 MR.149 Combined Bearings MR.149 MR.148G2 · MR149 high load combined bearing · MR149 MR.150 Combined Bearings MR.150 MR.148G2 · MR150 high load combined bearing · MR150 MR.151 Combined Bearings MR.151 MR.151G2 · MR151 high load combined bearing · MR151G2 MR.142 Combined Bearings MR.142 MR.142G2 · 4.0784 · JD107.7-69-KZ MR.152 Combined Bearings MR.152 MR.142G2 · 4.078 · JD108.55-58.5-KZ MR.153 Combined Bearings MR.153 MR.142G2 · MR153 high load combined bearing · MR153 MR.154 Combined Bearings MR.154 MR.154G2 · MR154 high load combined bearing · MR154G2 MR4180 Combined Bearings MR4180 MR4180 heavy load combined bearing · MR4180 externally adjustable bearing · MR-4180 MR4181 Combined Bearings MR4181 MR4181 heavy load combined bearing · MR4181 externally adjustable bearing · MR-4181 MR4182 Combined Bearings MR4182 MR4182 heavy load combined bearing · MR4182 externally adjustable bearing · MR-4182 MR4183 Combined Bearings MR4183 MR4183 heavy load combined bearing · MR4183 externally adjustable bearing · MR-4183 MR4184 Combined Bearings MR4184 MR4184 heavy load combined bearing · MR4184 externally adjustable bearing · MR-4184 MR4185 Combined Bearings MR4185 MR4185 heavy load combined bearing · MR4185 externally adjustable bearing · MR-4185 MR4186 Combined Bearings MR4186 MR4186 heavy load combined bearing · MR4186 externally adjustable bearing · MR-4186 MR4187 Combined Bearings MR4187 MR4187 heavy load combined bearing · MR4187 externally adjustable bearing · MR-4187 MR4188 Combined Bearings MR4188 MR4188 heavy load combined bearing · MR4188 externally adjustable bearing · MR-4188

Compatibility reference

Combined bearing and Standard NbV profile matching table

Download matching PDF

Use the matrix in both directions: select a profile from the bearing model, or identify the related bearing class from an existing profile. Confirm profile geometry, clearance and the current drawing before manufacture.

Standard NbV 0-8 profile and combined-bearing classes
Profile Article / replacement Mass Matched bearings Verification note
Standard 0 NbV 113.010.000
JDG62 		10.5 kg/m 4.054 · 4.454 Also used with 4.054HT and related 2.054 / KB references after drawing verification.
Standard 1 NbV 113.011.000
JDG70 		14.8 kg/m 4.055 · 4.455 Matched to the 70 mm combined-bearing class.
Standard 2 NbV 113.012.000
JDG78 		20.9 kg/m 4.056 · 4.456 Verify low-profile 4.057 variants separately.
Standard 3 NbV 113.013.000
JDG89 		28.6 kg/m 4.058 · 4.458 Common U-profile match for the 88.4 / 88.9 mm bearing class.
Standard 4 NbV 113.014.000
JDG108 		36.0 kg/m 4.061 · 4.461 Current official profile weight differs slightly from some legacy factory tables.
Standard 5 NbV 113.015.000
JDG123 		42.8 kg/m 4.062 · 4.462 Matched to the 123 mm combined-bearing class.
Standard 6 NbV 113.016.000
JDG150 		52.3 kg/m 4.063 · 4.463 Matched to the 149 mm combined-bearing class.
Standard 7 NbV 113.017.000

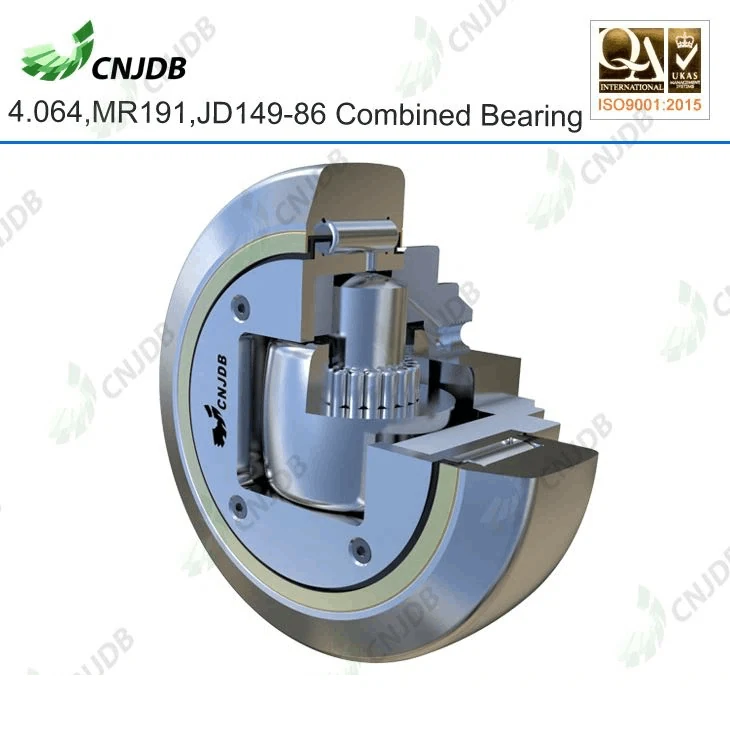

Standard 7 replacement profile 		65.2 kg/m 4.064 4.464 and PR4.064 / PR4.464 variants require execution-specific verification.
Standard 8 NbV 113.018.000
Standard 8 replacement profile 		78.8 kg/m 4.085 Also associated with PR4.085 variants; verify AP90-Q mounting geometry.

Information required for selection

Identification
Complete bearing marking plus any MR, TR, JD or 400-series reference.
Envelope
Outside diameter, overall width, shaft size and plate or profile geometry.
Loading
Required radial and axial load, shock level and duty cycle.
Adjustment
Fixed or eccentric axial roller and the required adjustment method.
Environment
Speed, temperature, contamination, lubrication and sealing requirement.

Processed technical reference

4.058 / JD88.4-57 Combined Bearing Reference

Download reference PDF

Factory combined radial and axial bearing example with dimensions, load ratings, speed and mass for model identification.

4.058 combined bearing dimensions, load ratings, speed and mass
Cross-referenced mmD mmH mmB mmFr kNFa kNCr kNC0r kNCa kNC0a kNnG rpmMass kg
4.058 / JD88.4-574588.4573022.47687223237501.62

Selection notice: The source notes two possible outside diameters for the 4.058 / MR0025 family. The table is specifically the 88.4 mm execution; verify weld geometry, axial unit position and drawing before ordering.

Data sources and processing notes

Verification

Drawings, inspection records and application evidence

Evidence is matched to the quoted product and order scope from our Changzhou manufacturing process. Batch documents are confirmed against the agreed drawing before shipment.

Technical drawings

Reference sheets support identification. Controlled manufacturing drawings require model and factory confirmation.

Inspection records

Request dimensional, marking, packing or factory-document checks with the RFQ. Availability is confirmed before order placement.

Factory and equipment media

Only dated factory media or inspection records captured for the quoted product batch are used as evidence.

Customer applications

Cases are published only with permission or in anonymized form using verified order and application facts.

Review the verification process Request product-specific documents

Combined Bearings dimensional inspection and model verification

Cross-Reference and Selection Support

Common cross-reference terms include MR, TR, JD and 400-series designations, and this product family is also searched as combination bearings or combi bearings. Send the complete marking, outside diameter, width, shaft or plate details, radial load, axial load and operating temperature.

Related Bearing Products

Matched Standard NbV profiles are available for combined-bearing guide systems. For rolling tracks and cams, see track roller bearings.

Request a combined bearing quotation

Related Products

Other bearing families

Continue browsing related industrial bearing categories or return to the full product catalog.

All bearing products Quality control Request a quote

Combined Bearings and Industrial Bearing Supply FAQ

Common Buyer Questions

Which industrial bearing types can you supply?

We support combined bearings (sometimes called combination bearings), track roller bearings, full-complement cylindrical roller bearings, back-up rollers, cross roller bearings, special guide rollers and Standard NbV profiles.

Can you cross-reference Winkel, INA, SKF or other bearing numbers?

Send the complete designation, dimensions and application. We can review equivalent series and replacement references, but the proposed item must be confirmed against mounting and operating data.

What information is required for a bearing quotation?

Provide the model, d × D × B dimensions, quantity, application, radial and axial loads, speed, temperature, lubrication, sealing requirement and delivery country. A drawing or marking photo is helpful.

Do you manufacture non-standard bearings and rollers?

Drawing-based dimensions, profiles, shaft ends, seals, grease, clearances and mounting features can be reviewed. Minimum quantity, tooling and lead time depend on the design.

Which track roller series are commonly requested?

Common searches include NUTR, NNTR, PWTR, NUKR, KR, KRV, NATR, NATV, CF and LFR series, including yoke type rollers and stud type cam followers.

Which full-complement cylindrical roller bearing series are available?

Frequently requested series include SL01, SL02, SL04, SL05, SL06, SL18, SL19, RSL, NCF, NJG, NNCL and NNCF.
