Which industrial bearing types can you supply?

We support combined bearings (sometimes called combination bearings), track roller bearings, full-complement cylindrical roller bearings, back-up rollers, cross roller bearings, special guide rollers and Standard NbV profiles.

Can you cross-reference Winkel, INA, SKF or other bearing numbers?

Send the complete designation, dimensions and application. We can review equivalent series and replacement references, but the proposed item must be confirmed against mounting and operating data.

What information is required for a bearing quotation?

Provide the model, d × D × B dimensions, quantity, application, radial and axial loads, speed, temperature, lubrication, sealing requirement and delivery country. A drawing or marking photo is helpful.

Do you manufacture non-standard bearings and rollers?

Drawing-based dimensions, profiles, shaft ends, seals, grease, clearances and mounting features can be reviewed. Minimum quantity, tooling and lead time depend on the design.

Which track roller series are commonly requested?

Common searches include NUTR, NNTR, PWTR, NUKR, KR, KRV, NATR, NATV, CF and LFR series, including yoke type rollers and stud type cam followers.

Which full-complement cylindrical roller bearing series are available?

Frequently requested series include SL01, SL02, SL04, SL05, SL06, SL18, SL19, RSL, NCF, NJG, NNCL and NNCF.

Full Complement Roller Bearings

Name: Full Complement Cylindrical Roller Bearings
SKU: full-complement-cylindrical-roller-bearings

SL045010PP full complement cylindrical roller bearing

Product Overview

Full Complement Cylindrical Roller Bearings

High radial-load cylindrical roller bearings for gearboxes, rope sheaves, extruders and industrial drives.

Selection Internal clearance, locating function and lubrication reviewed

Lead time Series and quantity dependent

Input required Model, dimensions or controlled drawing

High-Capacity Full Complement Roller Bearings

Without a cage, full-complement cylindrical roller bearings contain the maximum number of rollers and provide very high radial load capacity in a compact envelope.

SL and Equivalent Series

SL01, SL02, SL04, SL05 and SL06 series
SL18 single-row and SL19 single-row series
RSL, NCF, NJG, NNCL and NNCF designs
Open, sealed, single-row, double-row and multi-row variants

Reference Groups

Full Complement Cylindrical Roller Bearings series and model references

Use these groups to identify the requested design. A reference is not an interchange approval; dimensions, suffixes and operating conditions must still be checked.

Design group	Common references or options
Locating and semi-locating designs	SL01, SL02, SL04, SL05, SL06
Single-row full-complement designs	SL18 2205–2206, SL18 3004–3010, SL19, NCF
Double-row and multi-row equivalents	NNCF, NNCL and application-specific designs
Sealed variants	PP, 2RS and manufacturer-specific suffixes

Full Complement Cylindrical Roller Bearings model directory

Browse individual model dimensions, applications and common cross references.

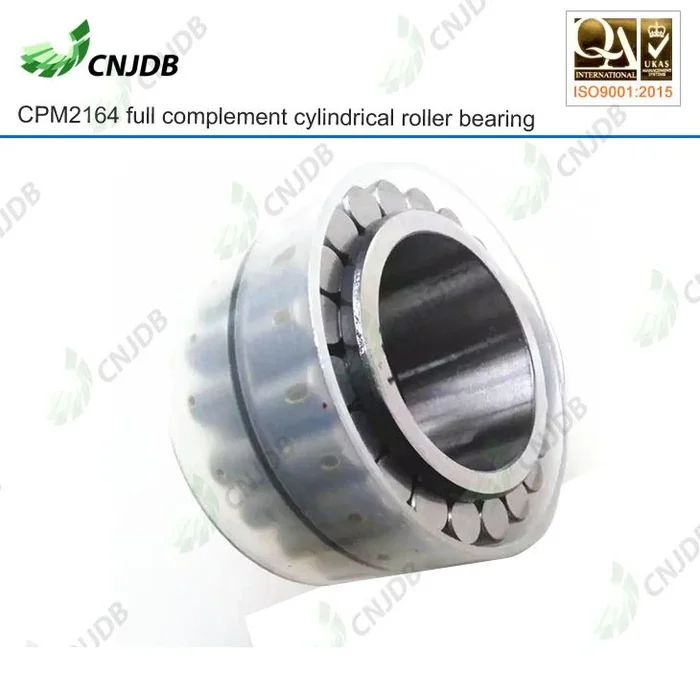

CPM2164 Full Complement Cylindrical Roller Bearings

CPM2164CPM 2164 · Planetary Gearbox Bearing

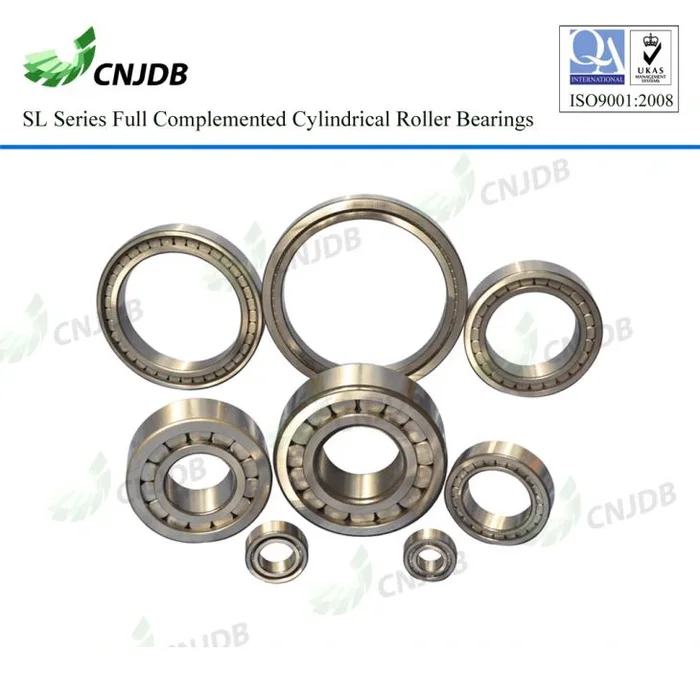

SL18 4860 Full Complement Cylindrical Roller Bearings

SL18 4860NNCF4860V · MRCF4860

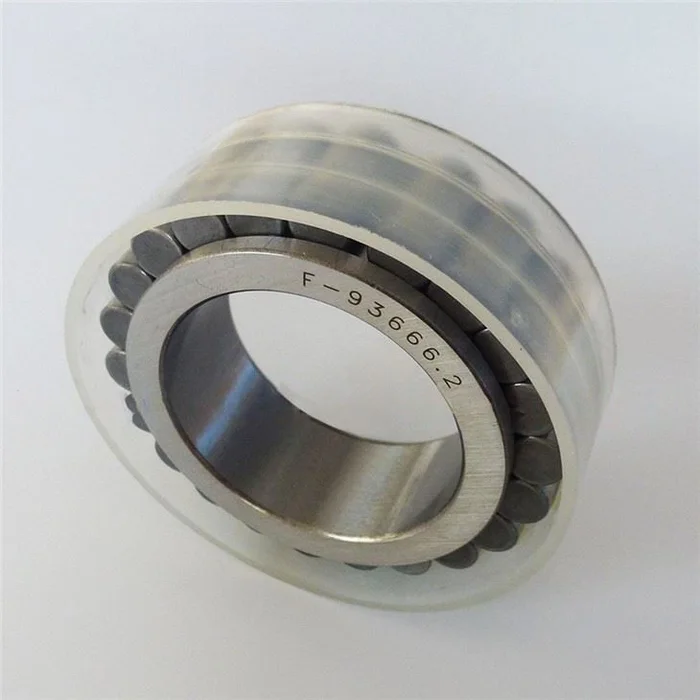

F-93666.2 Full Complement Cylindrical Roller Bearings

F-93666.2F93666.2 · Reducer Gearbox Bearing

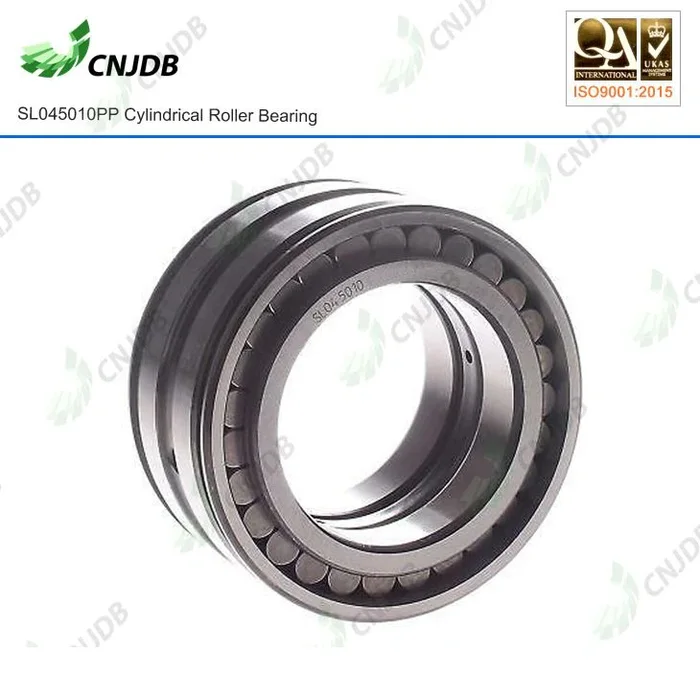

SL045010PP Full Complement Cylindrical Roller Bearings

SL045010PPSL04 5010PP · NNF5010ADA.2LS.V

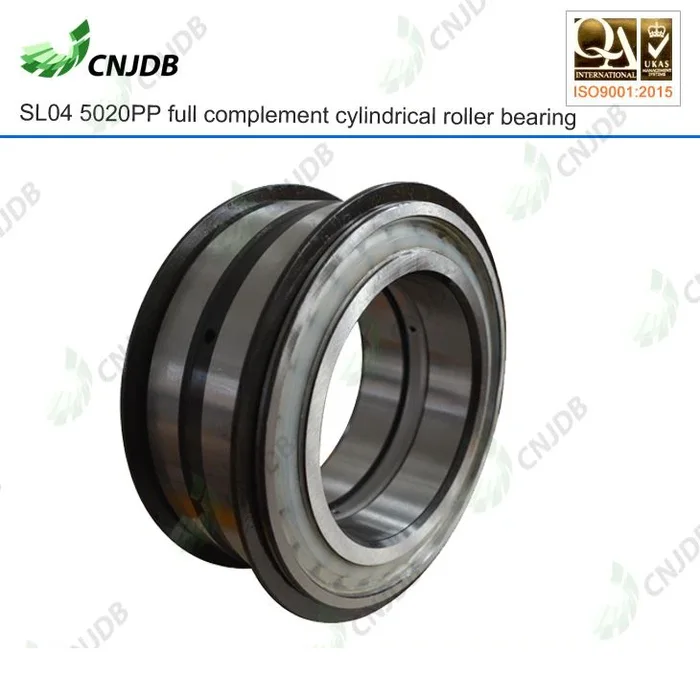

SL04 5020PP Full Complement Cylindrical Roller Bearings

SL04 5020PPNNF5020C.2LS.V · NNF5020ADA-2LSV · MRF5020.2RS

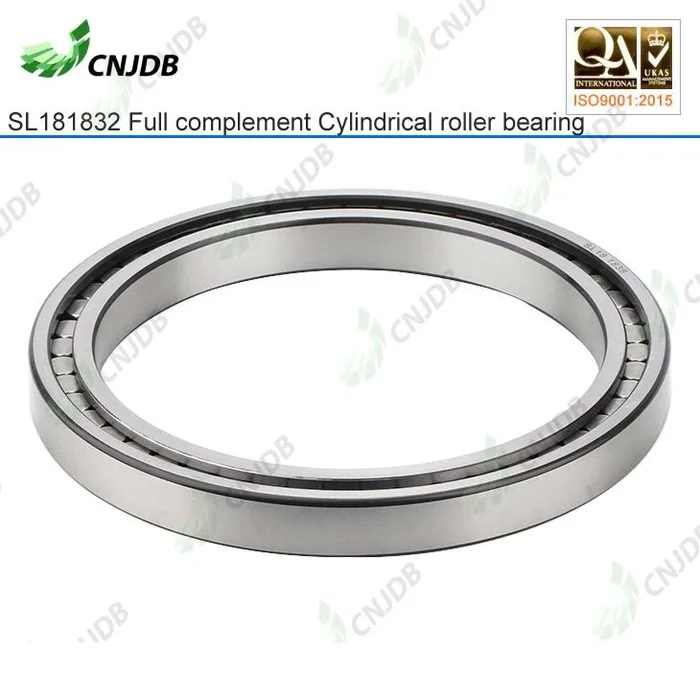

SL18 1832 Full Complement Cylindrical Roller Bearings

SL18 1832NCF1832V · SL181832

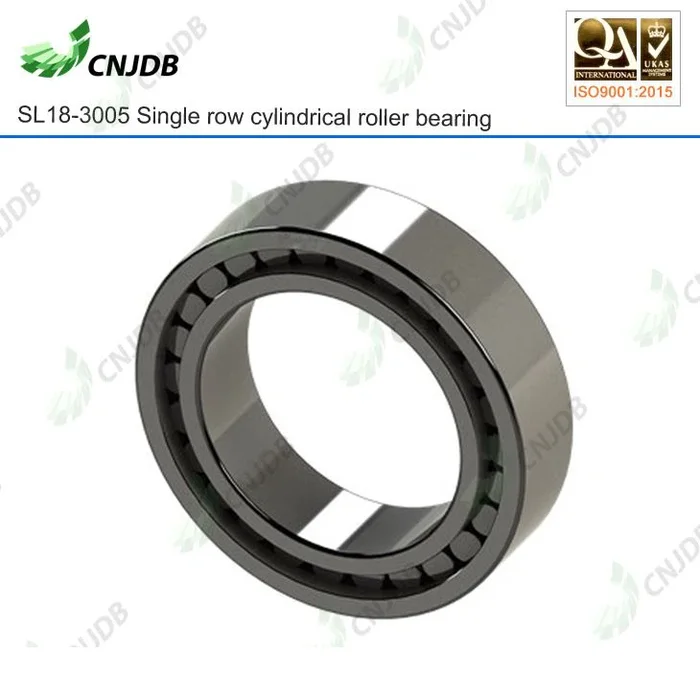

SL18 3005 Full Complement Cylindrical Roller Bearings

SL18 3005NCF3005V · SL183005

SL18 3004 Full Complement Cylindrical Roller Bearings

SL18 3004NCF3004V · SL183004

SL18 3006 Full Complement Cylindrical Roller Bearings

SL18 3006NCF3006V · SL183006

SL18 3007 Full Complement Cylindrical Roller Bearings

SL18 3007NCF3007V · SL183007

SL18 3008 Full Complement Cylindrical Roller Bearings

SL18 3008NCF3008V · SL183008

SL18 3009 Full Complement Cylindrical Roller Bearings

SL18 3009NCF3009V · SL183009

SL18 3010 Full Complement Cylindrical Roller Bearings

SL18 3010NCF3010V · SL183010

SL18 2205 Full Complement Cylindrical Roller Bearings

SL18 2205NCF2205V · SL182205

SL18 2206 Full Complement Cylindrical Roller Bearings

SL18 2206NCF2206V · SL182206

Information required for selection

Dimensions: Confirm bore d, outside diameter D and width B from the bearing or drawing.
Locating function: Determine whether the bearing must locate the shaft axially in one or both directions.
Internal design: Single-row, double-row or multi-row arrangement and open or sealed construction.
Operating fit: Required internal clearance, shaft and housing fits and operating temperature.
Lubrication and speed: Oil or grease method, relubrication interval and limiting operating speed.

Processed technical reference

SL18 30 Full Complement Bearing Verified Samples

Download reference PDF

Verified load samples for SL18 3004 / 3005. Additional SL18 2205–2206 and SL18 3006–3010 envelope pages are listed in the model directory for identification and RFQ.

SL18 30 dimensions, load ratings, speed and mass
Model	d mm	D mm	B mm	Cr kN	C0r kN	Cur kN	Limit rpm	Reference rpm	Mass kg
SL18 3004	20	42	16	30.5	26	4.45	11,400	7,500	0.11
SL18 3005	25	47	16	35	32	5.5	9,500	6,200	0.12

Selection notice: Confirm suffix, internal clearance, permissible axial displacement, minimum load, lubrication, speed basis and current controlled drawing before selection.

Data sources and processing notes

Factory SL18 series model directory - Model pages for SL18 2205–2206 and SL18 3004–3010 plus sealed SL04 samples.
Schaeffler single-row full-complement design guidance - Industry design reference for the SL1818, SL1822, SL1829 and SL1830 families.

Verification

Drawings, inspection records and application evidence

Evidence is matched to the quoted product and order scope from our Changzhou manufacturing process. Batch documents are confirmed against the agreed drawing before shipment.

Technical drawings

Reference sheets support identification. Controlled manufacturing drawings require model and factory confirmation.

Inspection records

Request dimensional, marking, packing or factory-document checks with the RFQ. Availability is confirmed before order placement.

Factory and equipment media

Only dated factory media or inspection records captured for the quoted product batch are used as evidence.

Customer applications

Cases are published only with permission or in anonymized form using verified order and application facts.

Review the verification process Request product-specific documents

Full Complement Cylindrical Roller Bearings dimensional inspection and model verification

Application and Selection Data

Common uses include industrial gearboxes, cable sheaves, lifting equipment, extruders and slow-to-medium-speed heavy drives. Confirm d × D × B dimensions, axial locating requirement, internal clearance, speed and oil or grease lubrication.

For track-running outer rings, see track roller bearings. Request an SL-series cross-reference.
