Adjustable clearance
Use PR4 eccentric or MR.96 screw-adjustable families when installation requires controlled axial setting. Confirm the adjustment range and locking method.
Series selection hub
Choose by adjustment method and duty
Special combined bearings solve applications that cannot be approved from a standard outside diameter alone. Compare the existing mounting arrangement first: eccentric adjustment sets clearance through the stud, screw-adjustable supports move the axial roller externally, shim-adjustable supports use calibrated washers, and HT executions require temperature-specific lubrication and sealing.
Temperature duty
Use the 4.054HT–4.063HT family only after the actual bearing temperature, grease, seals and relubrication plan are defined.
High axial load
MR.142 and MR.146–MR.154 use a separate hardened axial support. Verify its geometry and washer stack against the application drawing.

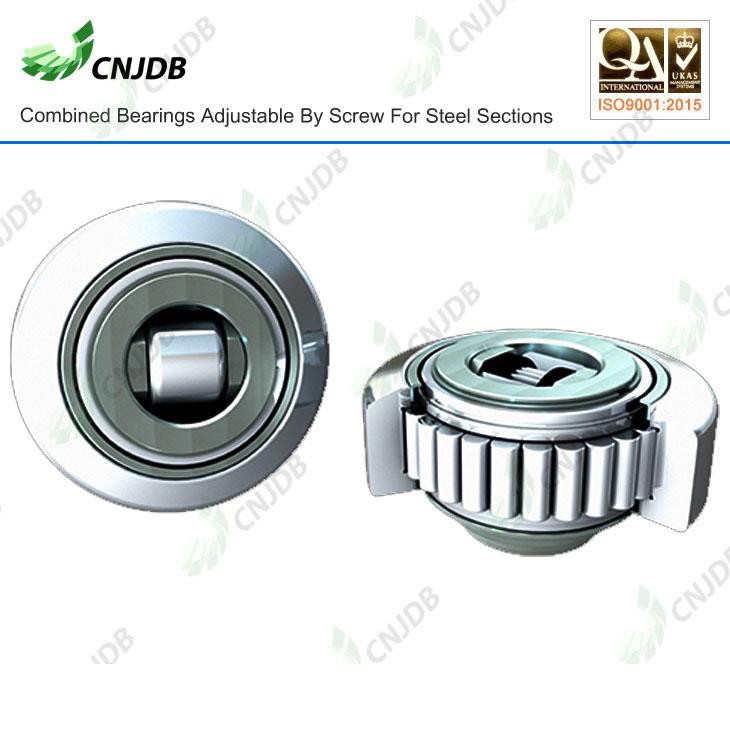

Technical tableMR.961-MR.968 Screw-Adjustable Combined Bearings
Complete MR.961 through MR.968 screw-adjustable combined bearing dimensions, radial and axial load ratings, speed, mass, materials and drawings.
View dimensions and drawings

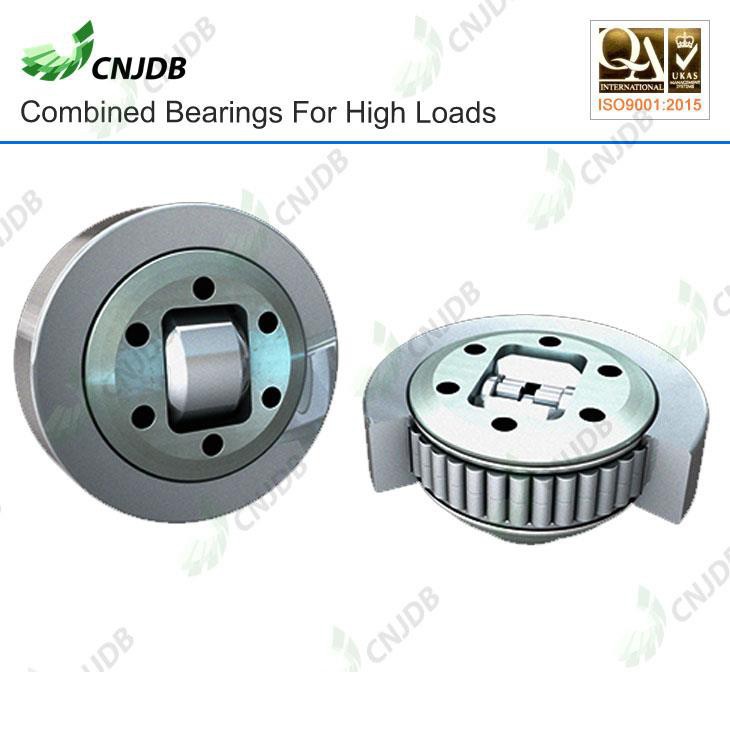

Technical tableMR.142 / MR.146-MR.154 High-Load Axial-Support Bearings
MR.142, MR.146 through MR.154 high-load combined bearing dimensions, loads, speed, mass, material and shim adjustment data.
View dimensions and drawings

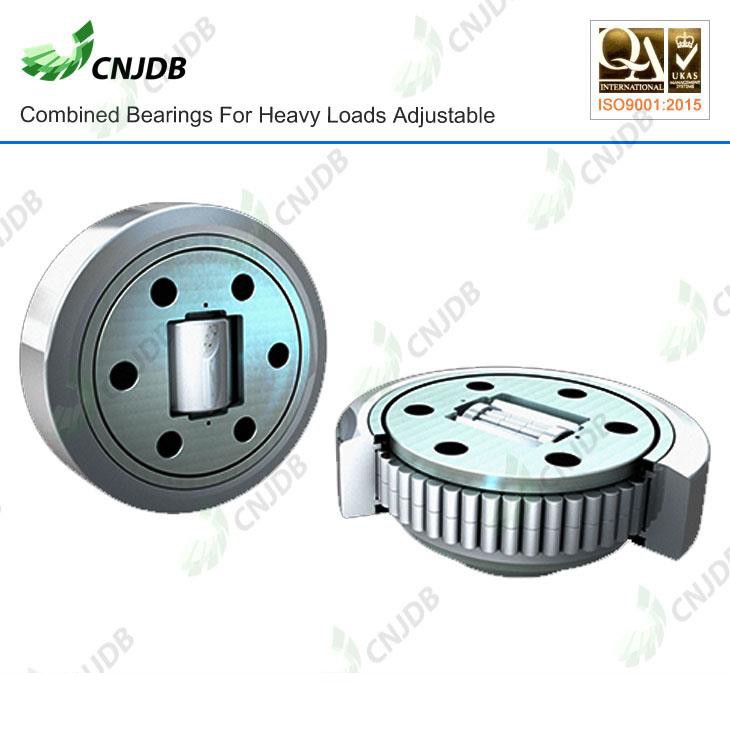

Technical tableMR4180-MR4188 Heavy-Load Adjustable Combined Bearings
MR4180 through MR4188 heavy-load combined bearing dimensions, radial and axial load ratings, materials, drawing and RFQ data.
View dimensions and drawings

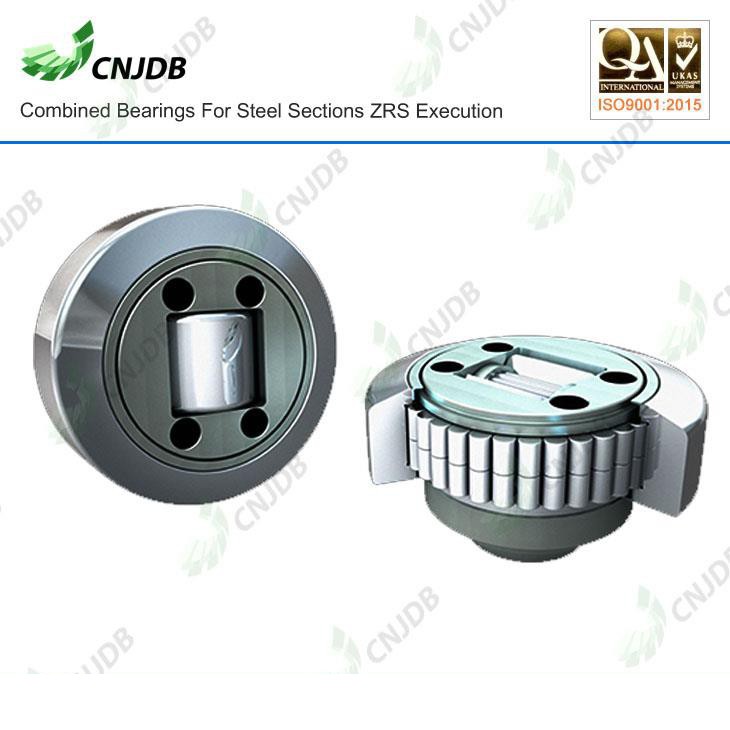

Technical tableMR.001-MR.191 Steel-Section ZRS Combined Bearings
Complete ZRS steel-section combined bearing dimensions, load ratings, speed, mass and MR cross-references for mast and industrial guide systems.
View dimensions and drawings
Technical tableMR.004-MR.041 Inclined-Section ZRS Combined Bearings
Inclined steel-section ZRS combined bearing dimensions, loads, speed, mass and alternate MR references for angled guide profiles.
View dimensions and drawings

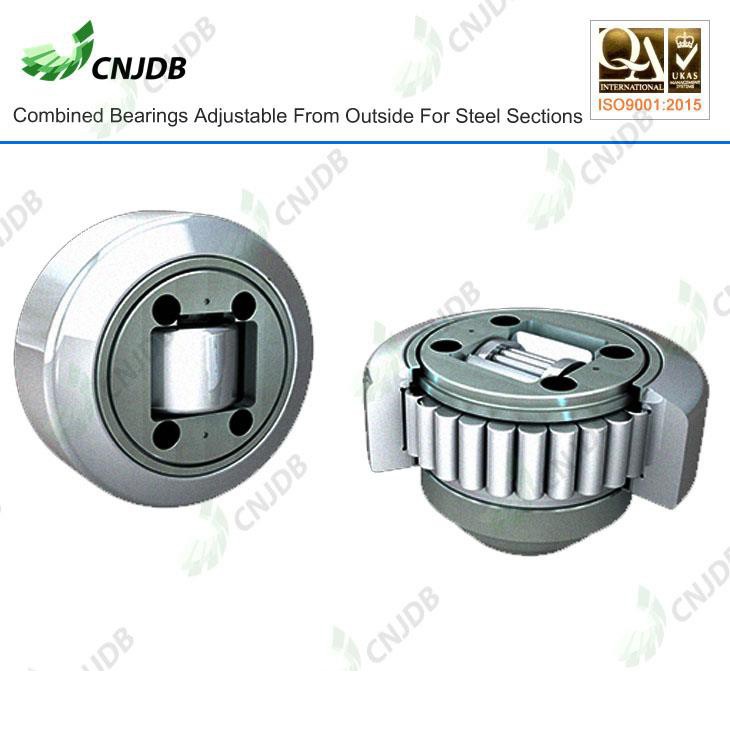

Technical tableKRES.062-KRES.149 Externally Adjustable Combined Bearings
KRES externally adjustable combined bearing dimensions, adjustment ranges, load ratings, speed and mass for steel-section guide systems.
View dimensions and drawings

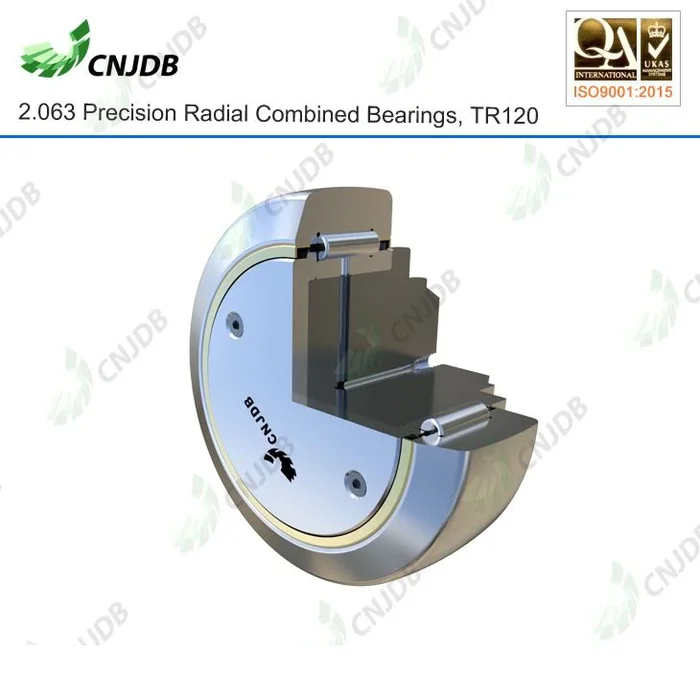

Technical table2-Series Radial Combined Bearings With Stud
2-series radial combined bearing identification range for steel sections, including TR111, TR120, MR0120 and precision radial references.
View dimensions and drawings
Technical table4.054HT-4.063HT High-Temperature Combined Bearings
High-temperature combined bearing replacement range covering 4.054HT through 4.063HT with base model and profile matching guidance.
View dimensions and drawings
Technical tablePR4.454-PR4.463 Precision Adjustable Combined Bearings
Precision eccentric-adjustable combined bearing replacement range from PR4.454 through PR4.463 with cross-reference and drawing review guidance.
View dimensions and drawingsTechnical table4.078 / 4.0784 Shim-Adjustable Combined Bearings
4.078, 4.0784, MR.152 and MR.142 combined bearing dimensions, load ratings, speed, mass and shim-adjustment references.
View dimensions and drawingsInformation required before quotation
- Complete bearing model, suffix and every visible marking
- Radial roller diameter, stud or bore size, overall height and axial-support position
- Matched steel profile or mounting drawing
- Radial and axial load, speed, shock, duty cycle and temperature
- Quantity, inspection documents and destination country
Download technical tables or submit the model and drawing for review.
Special combined bearing FAQ
Which combined bearing series allows axial adjustment?
Eccentric PR4 models, MR.96 screw-adjustable models and 4.078 / 4.0784 shim-adjustable models use different adjustment methods. Select the series from the existing mounting geometry and controlled drawing.
How is an HT combined bearing selected?
Confirm the base model, actual bearing temperature, grease, seals and relubrication interval. The HT suffix alone does not define the complete temperature capability.
When is a high-load axial-support bearing required?
Use the high-load family when the application has a separate hardened axial support and higher side-load demand. Confirm the support geometry, shims and radial and axial load case.
What should be supplied for replacement verification?
Send the full model, marking photos, main dimensions, profile or mounting drawing, quantity, load, speed, temperature and destination.
