Standard NbV Steel Profiles

Standard 1 NbV steel U-profile sections for combined bearings

Product Overview

Standard NbV Profiles

Matched steel U-profiles for combined bearings, supplied in standard or cut-to-length configurations.

Selection Profile and mating bearing confirmed together
Lead time Stock or cut-length availability confirmed by RFQ
Input required Model, dimensions or controlled drawing

Steel Profiles for Combined Bearings

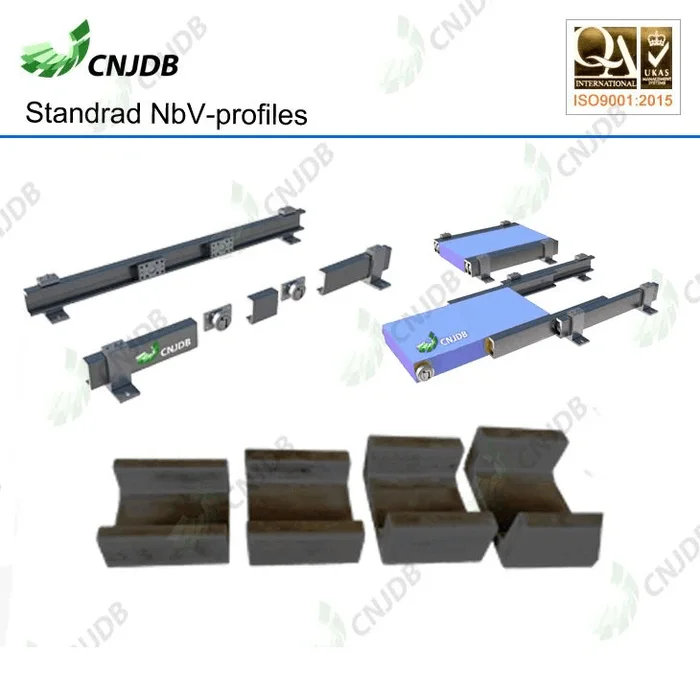

Standard NbV profiles form the guide track for combined-bearing linear systems used in forklift masts, telescopic columns and handling structures.

NbV and JDG Profile References

  • Standard 0 NbV / JDG62
  • Standard 1 NbV / JDG70
  • Standard 2 NbV / JDG78
  • Standard 3 NbV / JDG89
  • Standard 4 NbV / JDG108
  • JDG123, JDG150 and JDG152 heavy profiles

Also known as: other names for standard nbv profiles

Buyers, maintenance teams and machine builders use different names and spellings for the same product family. These terms are identification and search clues, not an interchange approval.

  • NbV profiles
  • NBV profile rails
  • Standard NbV steel profiles
  • U-channel guide rails
  • C-profile guide rails
  • Steel guide profiles
  • Guide profiles
  • Combined bearing guide rails
  • JDG profile rails
  • Cut-to-length guide profiles

Suffixes, seals, lubrication, tolerances and mounting executions can change fit. Send the complete marking and a controlled drawing for confirmation.

Reference Groups

Standard NbV Profiles series and model references

Use these groups to identify the requested design. A reference is not an interchange approval; dimensions, suffixes and operating conditions must still be checked.

Design group Common references or options
Light profile references Standard 0 NbV / JDG62; Standard 1 NbV / JDG70
Medium profile references Standard 2 NbV / JDG78; Standard 3 NbV / JDG89
Heavy profile references Standard 4 NbV / JDG108; JDG123, JDG150, JDG152
Supply formats Standard fixed length or cut-to-length after confirmation

Standard NbV Profiles model directory

Browse individual model dimensions, applications and common cross references.

Standard 0 NbV / JDG62 Standard NbV Profiles Standard 0 NbV / JDG62 JDG62 · Standard 0 NbV · JDG-62 Standard 1 NbV / JDG70 Standard NbV Profiles Standard 1 NbV / JDG70 JDG70 · Standard 1 NbV · JDG-70 Standard 2 NbV / JDG78 Standard NbV Profiles Standard 2 NbV / JDG78 JDG78 · Standard 2 NbV · JDG-78 Standard 3 NbV / JDG89 Standard NbV Profiles Standard 3 NbV / JDG89 JDG89 · Standard 3 NbV · JDG-89 Standard 4 NbV / JDG108 Standard NbV Profiles Standard 4 NbV / JDG108 JDG108 · Standard 4 NbV · JDG-108 Standard 5 NbV / JDG123 Standard NbV Profiles Standard 5 NbV / JDG123 JDG123 · Standard 5 NbV · JDG-123 Standard 6 NbV / JDG150 Standard NbV Profiles Standard 6 NbV / JDG150 JDG150 · Standard 6 NbV · 113.016.000 Standard 7 NbV Standard NbV Profiles Standard 7 NbV Standard 7 NbV · 113.017.000 · 113,017,000 Standard 8 NbV Standard NbV Profiles Standard 8 NbV Standard 8 NbV · 113.018.000 · 113,018,000 JDG152 Legacy Heavy Profile Standard NbV Profiles JDG152 Legacy Heavy Profile JDG152 · Heavy NbV profile · JDG-152

Compatibility reference

Combined bearing and Standard NbV profile matching table

Download matching PDF

Use the matrix in both directions: select a profile from the bearing model, or identify the related bearing class from an existing profile. Confirm profile geometry, clearance and the current drawing before manufacture.

Standard NbV 0-8 profile and combined-bearing classes
Profile Article / replacement Mass Matched bearings Verification note
Standard 0 NbV 113.010.000

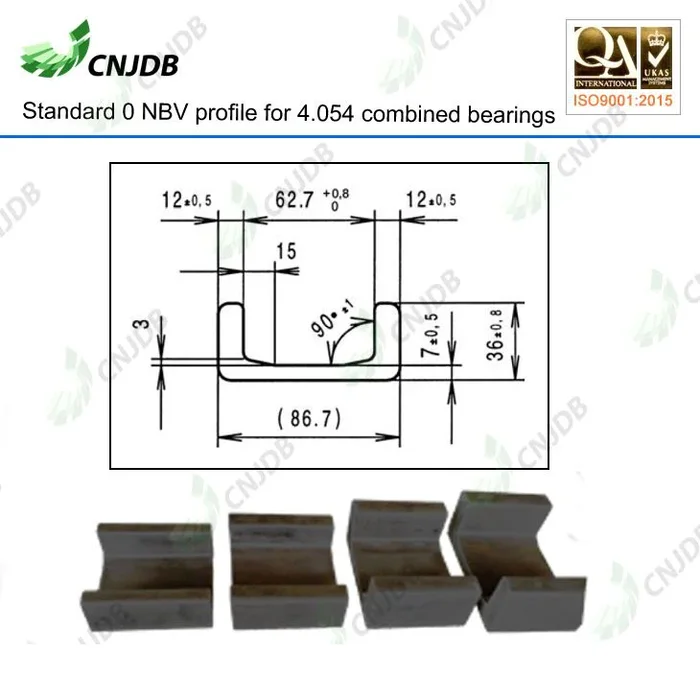

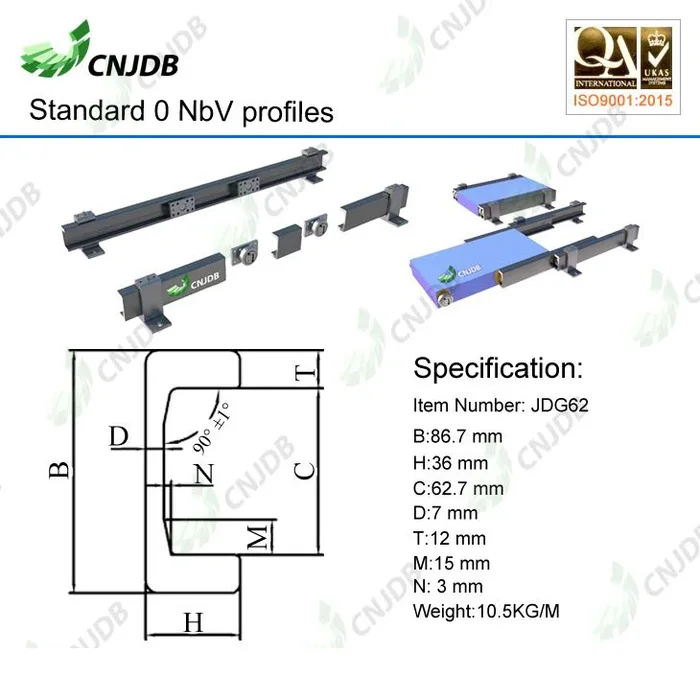

JDG62 		10.5 kg/m 4.054 · 4.454 Also used with 4.054HT and related 2.054 / KB references after drawing verification.
Standard 1 NbV 113.011.000

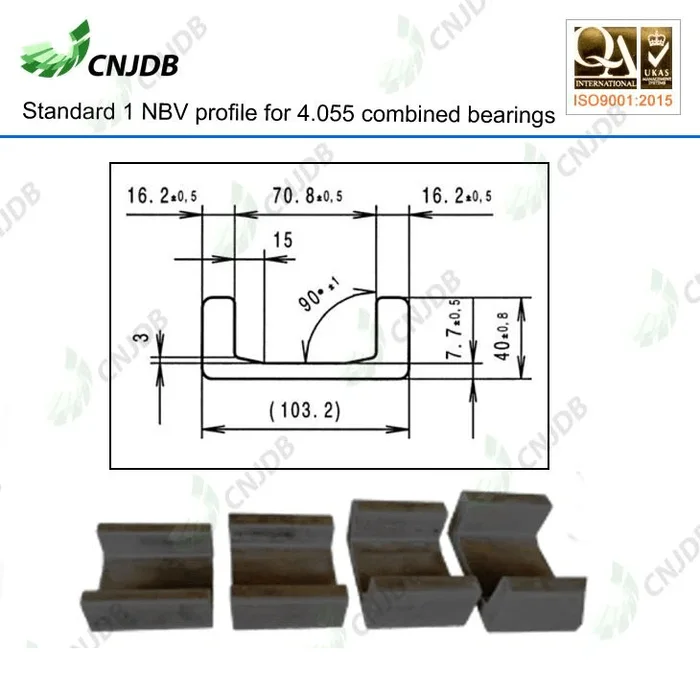

JDG70 		14.8 kg/m 4.055 · 4.455 Matched to the 70 mm combined-bearing class.
Standard 2 NbV 113.012.000
JDG78 		20.9 kg/m 4.056 · 4.456 Verify low-profile 4.057 variants separately.
Standard 3 NbV 113.013.000
JDG89 		28.6 kg/m 4.058 · 4.458 Common U-profile match for the 88.4 / 88.9 mm bearing class.
Standard 4 NbV 113.014.000
JDG108 		36.0 kg/m 4.061 · 4.461 Current official profile weight differs slightly from some legacy factory tables.
Standard 5 NbV 113.015.000
JDG123 		42.8 kg/m 4.062 · 4.462 Matched to the 123 mm combined-bearing class.
Standard 6 NbV 113.016.000
JDG150 		52.3 kg/m 4.063 · 4.463 Matched to the 149 mm combined-bearing class.
Standard 7 NbV 113.017.000
Standard 7 replacement profile 		65.2 kg/m 4.064 4.464 and PR4.064 / PR4.464 variants require execution-specific verification.
Standard 8 NbV 113.018.000
Standard 8 replacement profile 		78.8 kg/m 4.085 Also associated with PR4.085 variants; verify AP90-Q mounting geometry.

Information required for selection

Profile reference
NbV, JDG or drawing designation and the required section geometry.
Mating bearing
Combined bearing model and required running clearance in the guide.
Length
Finished length, cutting tolerance and end preparation.
Surface condition
As-rolled, blasted, primed or other agreed condition.
Logistics
Quantity, bundle length, destination and unloading constraints.

Verification

Drawings, inspection records and application evidence

Evidence is matched to the quoted product and order scope from our Changzhou manufacturing process. Batch documents are confirmed against the agreed drawing before shipment.

Technical drawings

Reference sheets support identification. Controlled manufacturing drawings require model and factory confirmation.

Inspection records

Request dimensional, marking, packing or factory-document checks with the RFQ. Availability is confirmed before order placement.

Factory and equipment media

Only dated factory media or inspection records captured for the quoted product batch are used as evidence.

Customer applications

Cases are published only with permission or in anonymized form using verified order and application facts.

Review the verification process Request product-specific documents

Standard NbV Profiles dimensional inspection and model verification

Profile Matching and Cut Lengths

Profiles may be supplied in fixed lengths or cut to requirement. Confirm the NbV or JDG designation, matching combined bearing model, required length, quantity and surface condition.

Request NbV profile dimensions and availability.
