Product Overview
Track Roller Bearings
Yoke type and stud type track rollers for cam drives, conveyors, guideways and heavy-duty automation.
Yoke Type and Stud Type Track Roller Bearings
Track rollers use a thick-section outer ring to run directly on tracks, cams and guide surfaces. We support full-complement, caged, sealed, crowned and cylindrical outer-ring designs.
Popular Track Roller Series
- NNTR and RSU double-row yoke track rollers
- NUTR and PWTR full-complement yoke rollers
- NUKR, NUKRE, KR, KRV and CF stud type cam followers
- NATR and NATV needle roller track rollers
- LFR profiled outer-ring track rollers
Reference Groups
Track Roller Bearings series and model references
Use these groups to identify the requested design. A reference is not an interchange approval; dimensions, suffixes and operating conditions must still be checked.
| Design group | Common references or options |
|---|---|
| Double-row yoke rollers | NNTR, RSU |
| Full-complement yoke rollers | NUTR, PWTR |
| Needle roller yoke followers | NATR, NATV |
| Stud type cam followers | NUKR, NUKRE, KR, KRV, CF |
| Profiled track rollers | LFR and drawing-based groove profiles |
Track Roller Bearings model directory
Browse individual model dimensions, applications and common cross references.

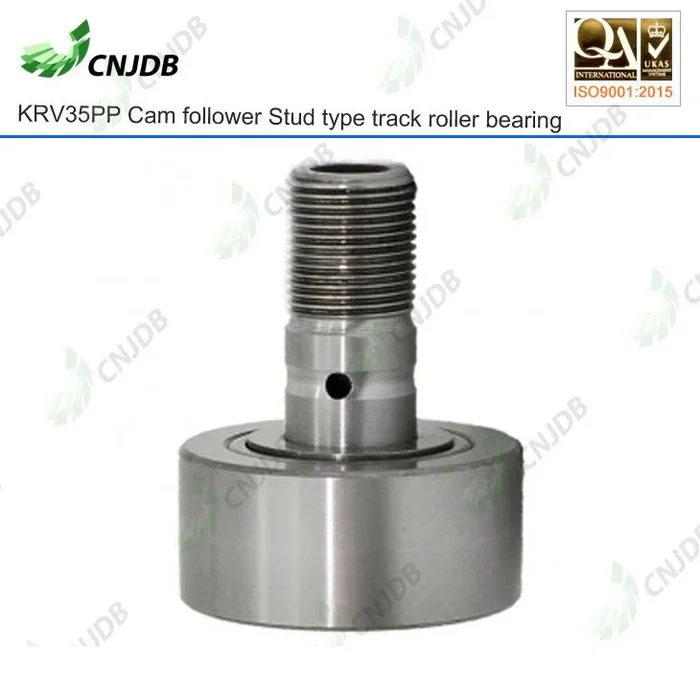

KRV35PPKRV35-PP · Stud Type Cam Follower

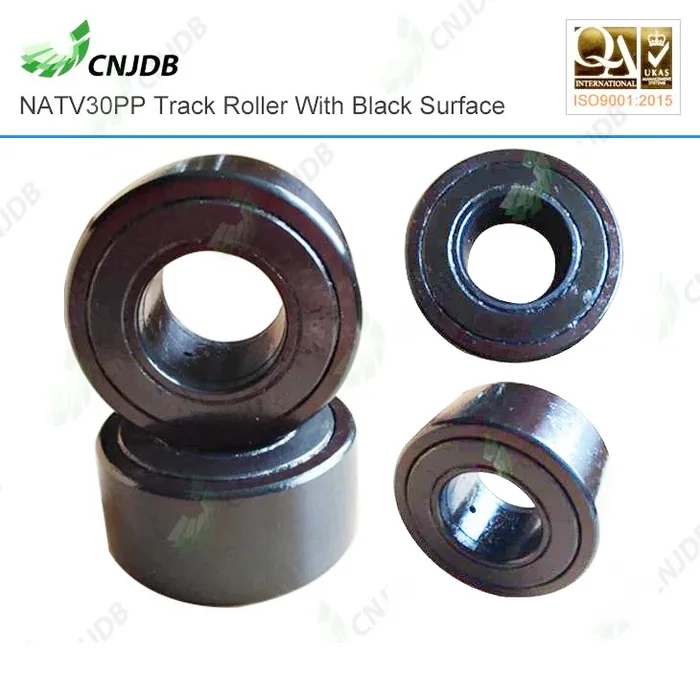

NATV30PPNATV30-PP · Yoke Type Track Roller

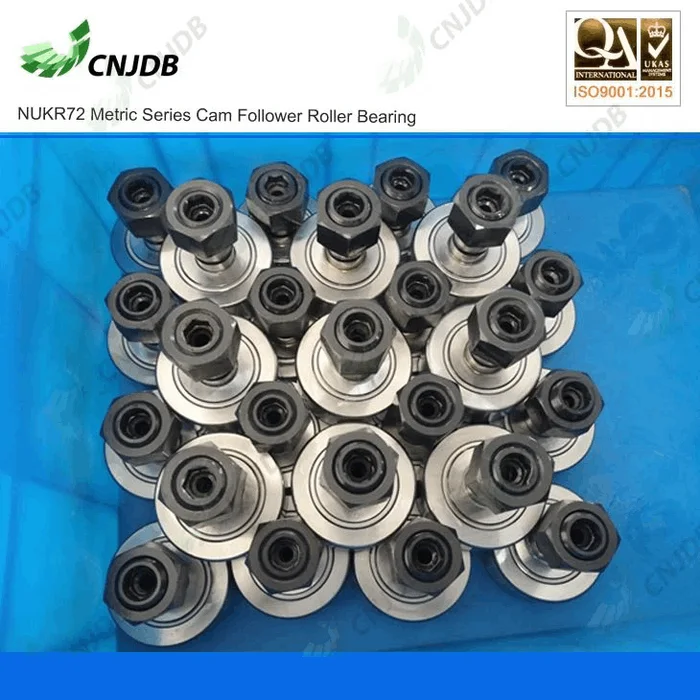

NUKR72NUKR 72 · Metric Cam Follower

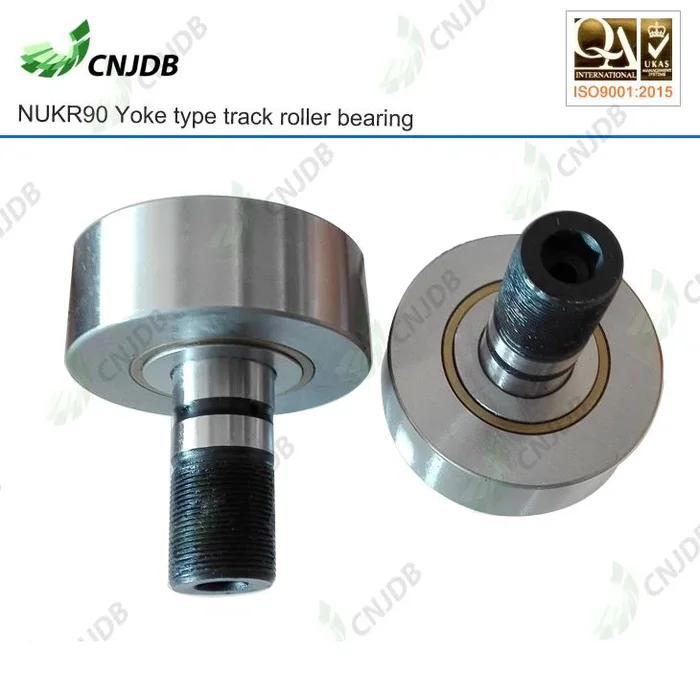

NUKR90NUKR 90 · Stud Type Track Roller

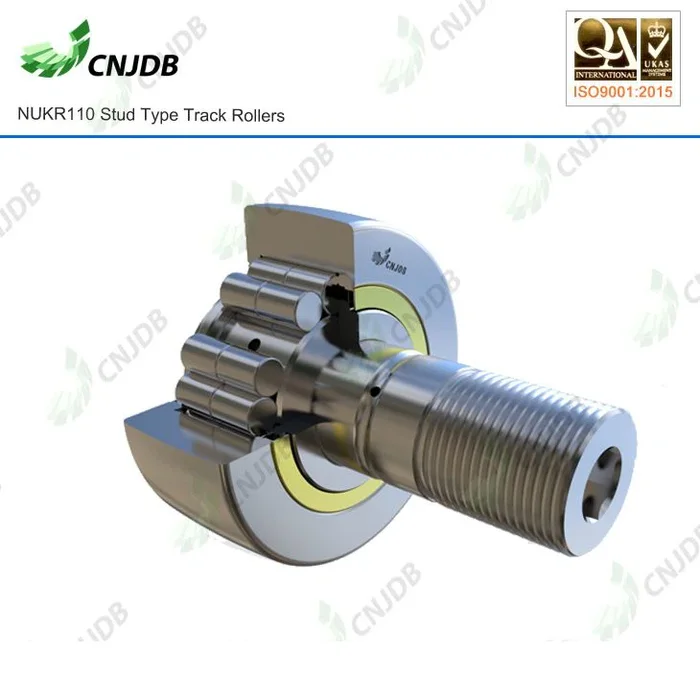

NUKR110NUKR 110 · Heavy Stud Track Roller

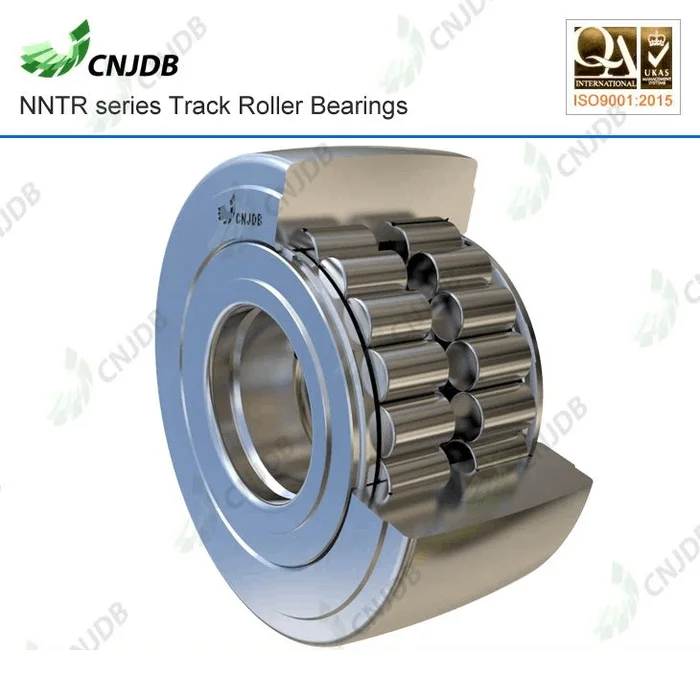

NNTR5013065-2ZLNNTR50X130X65-2ZL · RSU50-130 · NNTR5013065

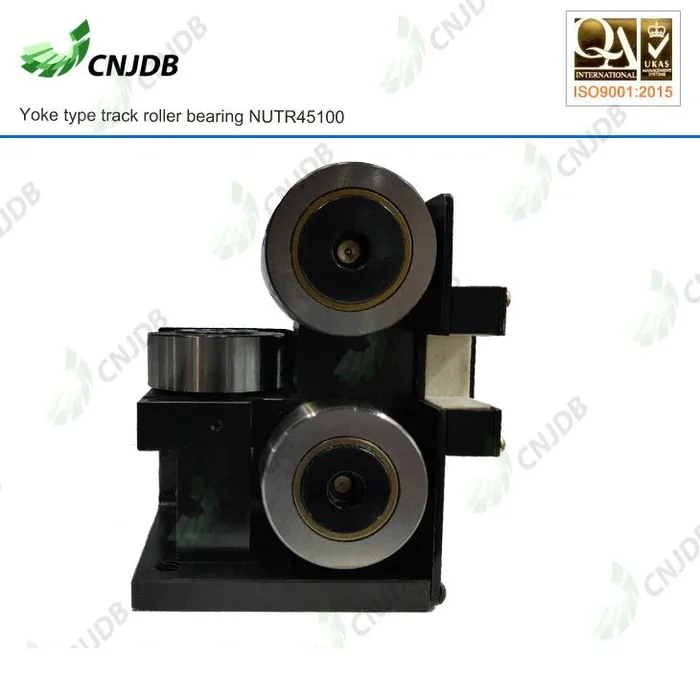

NUTR45100NUTR45-100 · Yoke Type Track Roller

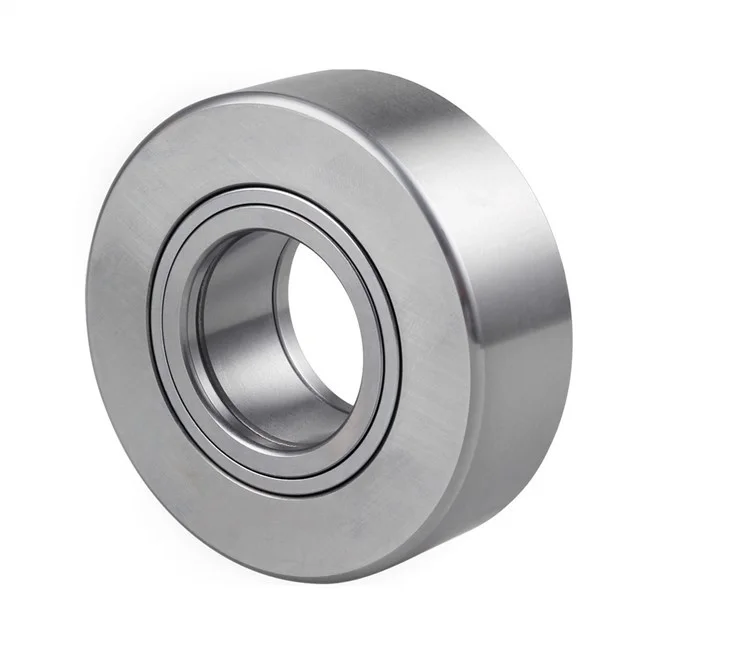

NUTR50110NUTR50-110 · Yoke Type Track Roller Information required for selection
- Mounting
- Confirm yoke bore mounting or stud mounting, including thread and shoulder details.
- Running surface
- Crowned, convex, cylindrical, V-groove or other profiled outer ring.
- Envelope
- Bore or stud diameter, outside diameter, outer-ring width and overall width.
- Track duty
- Radial load, occasional axial load, speed, shock and track hardness.
- Lubrication
- Sealed-for-life or relubricable construction and grease compatibility.
Processed technical reference
NATR..-PP Track Roller Dimensions and Load Reference
A processed comparison table for initial model identification. Public competitor data was checked against current Schaeffler reference data; current primary-source values are shown where the publications differ.
| Model | d mm | D mm | B mm | C mm | d2 mm | Crw kN | C0rw kN | Curw kN | nDG rpm | Mass kg |
|---|---|---|---|---|---|---|---|---|---|---|
| NATR5-PP | 5 | 16 | 12 | 11 | 12.5 | 3.20 | 3.45 | 0.465 | 14,000 | 0.014 |
| NATR6-PP | 6 | 19 | 12 | 11 | 15 | 3.55 | 4.10 | 0.560 | 11,000 | 0.019 |
| NATR8-PP | 8 | 24 | 15 | 14 | 19 | 5.50 | 6.70 | 0.940 | 7,500 | 0.038 |
| NATR10-PP | 10 | 30 | 15 | 14 | 23 | 6.80 | 8.70 | 1.240 | 5,500 | 0.064 |
| NATR12-PP | 12 | 32 | 15 | 14 | 25 | 7.00 | 9.20 | 1.320 | 4,500 | 0.066 |
| NATR15-PP | 15 | 35 | 19 | 18 | 27.6 | 9.70 | 14.50 | 1.860 | 3,600 | 0.095 |
| NATR17-PP | 17 | 40 | 21 | 20 | 31.5 | 10.90 | 16.00 | 2.130 | 2,900 | 0.139 |
| NATR20-PP | 20 | 47 | 25 | 24 | 36.5 | 15.40 | 26.00 | 3.450 | 2,400 | 0.236 |
| NATR25-PP | 25 | 52 | 25 | 24 | 41.5 | 15.20 | 27.00 | 3.600 | 1,800 | 0.271 |
| NATR30-PP | 30 | 62 | 29 | 28 | 51 | 23.30 | 39.50 | 5.300 | 1,300 | 0.444 |
| NATR35-PP | 35 | 72 | 29 | 28 | 58 | 24.80 | 45.00 | 6.000 | 1,000 | 0.547 |
| NATR40-PP | 40 | 80 | 32 | 30 | 66 | 32.50 | 59.00 | 8.400 | 850 | 0.795 |
| NATR50-PP | 50 | 90 | 32 | 30 | 76 | 31.00 | 60.00 | 8.500 | 650 | 0.867 |
Selection notice: Reference data only. Suffix, internal design, permissible outer-ring load, lubrication, track hardness and current manufacturer data must be verified before selection or quotation.
Data sources and processing notes
- Schaeffler Aerospace Standard Products - NATR..-PP - Primary technical reference used for the displayed values.
- Jade Bearings NATR..-PP product page - Competitive benchmark reviewed during data comparison.
Processed technical reference
NNTR / RSU Support Roller Verified Sample Data
Partner-published model samples for initial identification of double-row support rollers. The table keeps the source designations and published units.
| Model | d mm | D mm | B mm | C mm | Crw kN | C0rw kN | Mass kg |
|---|---|---|---|---|---|---|---|
| NNTR5512043 | 55 | 120 | 43 | 41 | 170 | 260 | 2.7 |
| NNTR5013065 | 50 | 130 | 65 | 63 | 188 | 265 | 5.2 |
| NNTR5514070 | 55 | 140 | 70 | 68 | 218 | 315 | 6.4 |
Selection notice: Published partner data only. Confirm the complete -2ZL suffix, permissible outer-ring load, profile, lubrication arrangement and controlled drawing for the quoted batch.
Data sources and processing notes
- Jade Bearings NNTR / RSU series table - Manufacturing-partner source for the displayed sample rows.
Processed technical reference
NUKR Stud Type Track Roller Dimensions and Loads
Manufacturer-published NUKR range data covering primary dimensions, stud thread, effective radial load ratings, continuous grease speed and mass.
| Model | D mm | Stud d1 mm | Overall B mm | Ring C mm | Thread G | Crw kN | C0rw kN | nDG rpm | Mass kg |
|---|---|---|---|---|---|---|---|---|---|
| NUKR35 | 35 | 16 | 52 | 18 | M16x1.5 | 15.3 | 18.7 | 6,500 | 0.164 |
| NUKR40 | 40 | 18 | 58 | 20 | M18x1.5 | 18.7 | 24.9 | 5,500 | 0.242 |
| NUKR47 | 47 | 20 | 66 | 24 | M20x1.5 | 28.5 | 37.5 | 4,200 | 0.380 |
| NUKR52 | 52 | 20 | 66 | 24 | M20x1.5 | 29.0 | 40.5 | 4,200 | 0.450 |
| NUKR62 | 62 | 24 | 80 | 28 | M24x1.5 | 40.0 | 55.0 | 2,600 | 0.795 |
| NUKR72 | 72 | 24 | 80 | 28 | M24x1.5 | 45.0 | 65.0 | 2,100 | 1.020 |
| NUKR80 | 80 | 30 | 100 | 35 | M30x1.5 | 69.0 | 104.0 | 1,800 | 1.600 |
| NUKR90 | 90 | 30 | 100 | 35 | M30x1.5 | 78.0 | 123.0 | 1,800 | 1.960 |
Selection notice: Values describe the cited PTI execution. Other manufacturers and A/E suffixes may differ; verify seals, outer profile, hex, nut supply and current drawing before interchange.
Data sources and processing notes
- PTI NUKR technical sheet - Primary manufacturer technical sheet for the displayed NUKR values.
Processed technical reference
NUTR25 Verified Product Reference
A current primary-source example showing the dimensional and performance fields required when expanding a NUTR quotation.
| Model | d mm | D mm | B mm | C mm | Crw kN | C0rw kN | nDG rpm | Mass kg |
|---|---|---|---|---|---|---|---|---|
| NUTR25 | 25 | 52 | 25 | 24 | 29.0 | 41.5 | 4,200 | 0.279 |
Selection notice: This is one verified model example, not a complete NUTR catalogue. Confirm the optimized outer profile, labyrinth seals, inner-ring relubrication and current Schaeffler data for other sizes.
Data sources and processing notes
- Schaeffler medias NUTR25 - Primary product record used for all displayed values.
Verification
Drawings, inspection records and application evidence
Evidence is matched to the quoted product and order scope. We do not present another supplier's factory media, certificates or customer projects as our own.
Technical drawings
Reference sheets support identification. Controlled manufacturing drawings require model and supplier confirmation.
Inspection records
Request dimensional, marking, packing or supplier-document checks with the RFQ. Availability is confirmed before order placement.
Factory and equipment media
Only dated media supplied by the selected manufacturing partner or captured during the relevant inspection is used as evidence.
Customer applications
Cases are published only with permission or in anonymized form using verified order and application facts.
Review the verification process Request product-specific documents
Model and Dimension Keywords
Frequently requested references include NNTR50X130X65-2ZL, NNTR5013065, RSU50-130, NUTR50110, NUTR2562, NUTR45100, NUKR72, NUKR90, NUKR110 and KRV35PP.
How to Specify a Track Roller
Provide mounting type, bore or stud diameter, outside diameter, width, track geometry, radial load, axial load, speed, shock level and relubrication requirement.
