MR.142 / MR.146-MR.154 High-Load Axial-Support Bearings

A separate hardened axial support carries side load. Adapter washers of 0.3, 0.5 and 1.0 mm set the axial position.

Request model review Download technical PDF

Dimensions and ratings

Series technical table

Download PDF

MR.142 / MR.146-MR.154 High-Load Axial-Support Bearings factory reference data
Model	Axial support	d mm	D mm	C mm	H mm	H1 mm	H2 mm	D1 mm	C1 mm	d1 mm	S mm	Angle	r mm	R mm	R1 mm	D2 mm	d2 mm	H3 mm	Cr kN	C0r kN	Ca kN	C0a kN	Speed rpm	Mass kg
MR.146	MR.146G2	30	62	20	43	33	10	50	16	42	5.5	20°	3	500	500	40	25	22	39	65	10	14	900	0.60
MR.147	MR.146G2	35	70.1	23	48	40	8	57	16	48	6.5	20°	4	500	500	40	25	22	56	93	10	14	900	0.90
MR.148	MR.148G2	40	77.7	23	50.5	39.5	11	61	21	54	7	20°	4	700	700	52	33	28	58	101.5	14	22	800	1.05
MR.149	MR.148G2	40	78.3	23	45	34	11	61	21	54	7	20°	4	850	700	52	33	28	58	101.5	14	22	800	0.95
MR.150	MR.148G2	45	88.9	30	61	48	13	69.5	21	59	7	20°	3	850	700	52	33	28	84	133	14	22	700	1.70
MR.151	MR.151G2	50	101.9	28	50.5	37.5	13	77	21	67	7	20°	3	850	700	52	33	28	91	153	18	22	700	1.85
MR.142 / 4.0784	MR.142G2	60	107.7	31	69	55	14	82	33	71	8	20°	4	1000	700	74	48	38	94	162	39	57	650	2.40
MR.152 / 4.078	MR.142G2	55	108.55	31	58.5	44.5	14	82	33	71	8	20°	4	1000	700	74	48	38	94	162	39	57	650	2.80
MR.153	MR.142G2	60	123	37	75.8	59.5	16.3	92	33	78	8	20°	4	1000	1000	74	48	38	132	242	39	57	500	4.10
MR.154	MR.154G2	60	149	43	89	69	20	116	50	103	15	15°	4	1000	1000	105	72	>55	179	353	83	131	400	6.80

Selection notice: Catalog values support identification. Confirm suffix, drawing, load case, adjustment, lubrication and current production data before ordering.

Design, materials and verification

Axial support: UNI 40NiCrMo4 hardened and tempered
Outer ring: UNI 16NiCr4 case-hardened; rolling elements: UNI 100Cr6
MR.142 cross-references 4.0784 / JD107.7-69-KZ
MR.152 cross-references 4.078 / JD108.55-58.5-KZ / 400-0078

Data reviewed: 2026-07-18. Authorized Jade high-load technical sheet. The downloadable table is an identification reference; the quotation drawing controls production and inspection.

Technical drawings

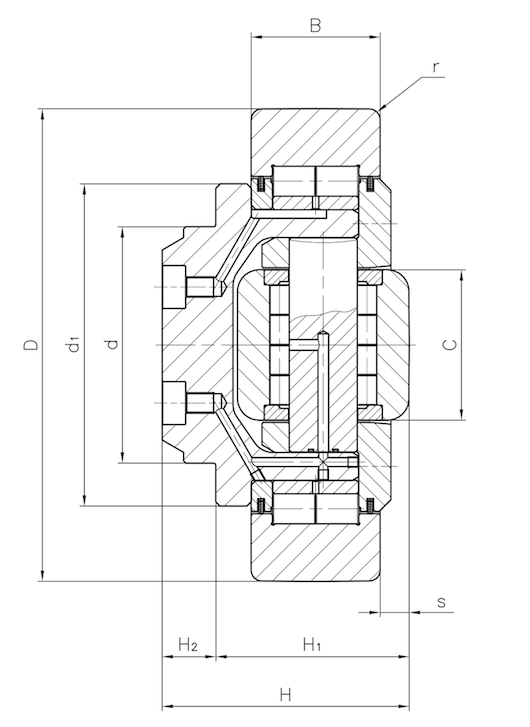

High-load combined bearing with axial support technical drawing. Verify the controlled drawing for the quoted execution.
